45pcs/Min 100ml Concealer Cream Cosmetic Filling Machine With Nozzle Lifting

45pcs/Min 100ml Concealer Cream Cosmetic Filling Machine With Nozzle Lifting

45pcs/Min 100ml Concealer Cream Cosmetic Filling Machine With Nozzle Lifting
45pcs/Min 100ml Concealer Cream Cosmetic Filling Machine With Nozzle Lifting
45pcs/Min 100ml Concealer Cream Cosmetic Filling Machine With Nozzle Lifting
제품 상세 정보:
원래 장소: 상하이, 중국
브랜드 이름: GIENI
인증: CE
모델 번호: JSFL
결제 및 배송 조건:
최소 주문 수량: 1
가격: Negotiable
포장 세부 사항: 합판 상자
배달 시간: 45
지불 조건: L/C (신용장), 인수 인도, D/P (지급도 조건), 전신환, 웨스턴 유니온, 머니그램
공급 능력: 1
접촉
상세 제품 설명
상품 이름: 컨실러 크림 화장용 충전기 채우는 양: 1-15ml ;10-50ml ;30-100ml
충전형: 냉각 충전과 뜨거운 충전 출력: 15-45pcs/min
재료: 접점 재료 부품 : SUS316L, GMP 표준하고 인사하세요 분사구 유형: 서보기구에 의해 가동되고, 위 아래로 오를 수 있습니다
채워 있는 탱크: 2 층, 외층 SUS304, 인너 레이어 SUS316L 제공하는 서비스하십시오: 온라인 지원, 비디오 전화 기술 지원, 무료 수리 부분, 훈련한 현장 설치, 유지
애플리케이션: 팬, 병, 컨실러에서 립밤에서 립스틱이 크림, 립스틱 기타 등등을 청소합니다 탱크 기능: 가열됨으로써 혼합됨으로써 진공청소기로 청소하세요
하이 라이트:

100ml Cream Cosmetic Filling Machine

,

Nozzle Lifting Cosmetic Filling Machine

,

45pcs/min Cosmetic Filling Machine



1-100ml Concealer Cream Cosmetic Filling Machine With Nozzle Lifting Function​ (JSFL) is our latest design, it is used for either hot filling or cold filling cosmetic products.


Applications of Concealer Cream Cosmetic Filling Machine

  • hot filling for viscosity products, like concealer, lipstick in pan, lip balm, sheabutters, foundation, etc;
  • cold filling for great fluids, such as cleaning cream, lotion, shampoo, and other oily products.



45pcs/Min 100ml Concealer Cream Cosmetic Filling Machine With Nozzle Lifting 0




Key Features of Concealer Cream Cosmetic Filling Machine

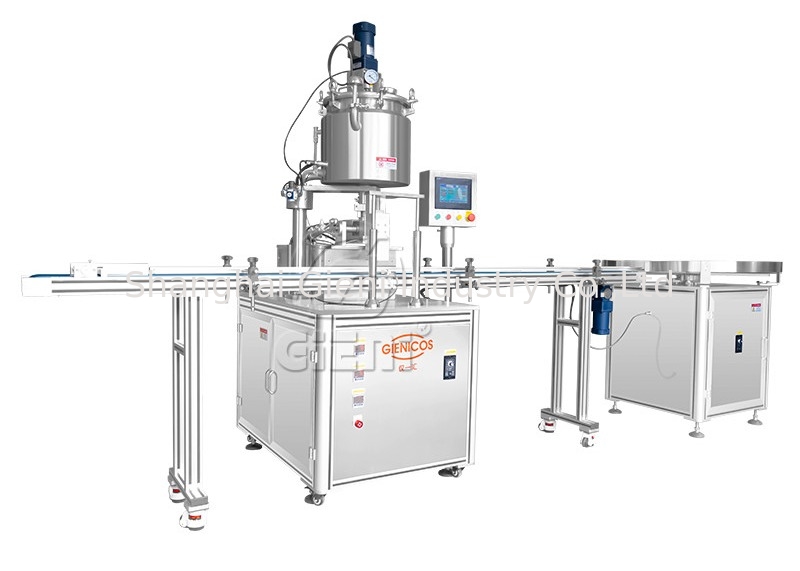

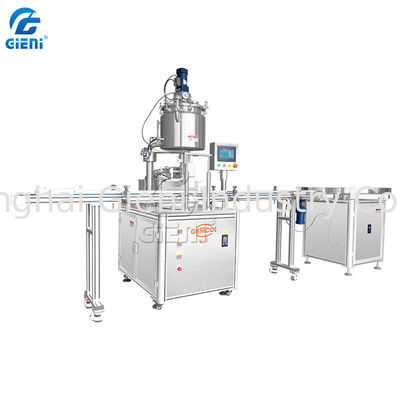

This filling line consists of 5parts, filling machine, conveyor,pre-heating machine, re-heating machine, and collection table.

The output is 15 - 45 pcs per minute according to different filling volumes.



1. Filling Machine
Filling Nozzle

1 nozzle, bottom filling, and top filling

Servo driven lift up-down

Filling Tank Volume 25L

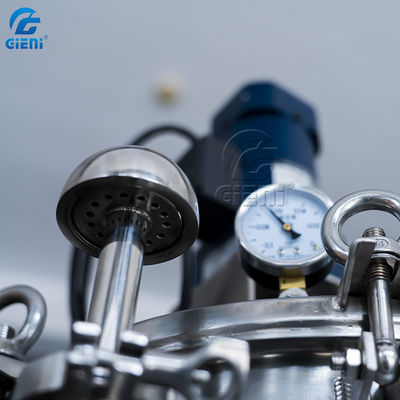

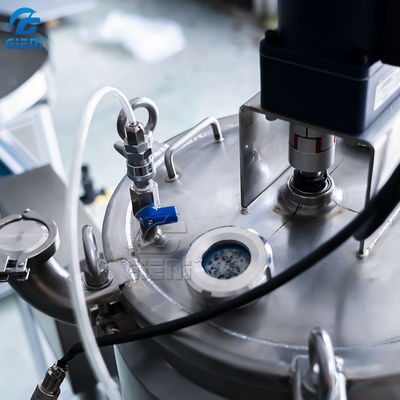

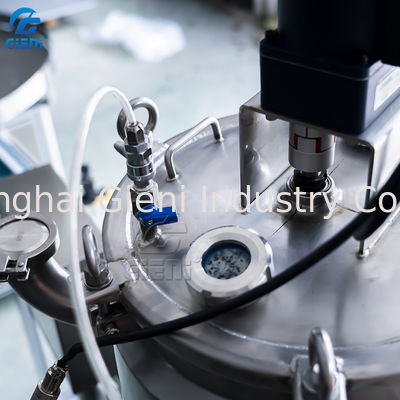

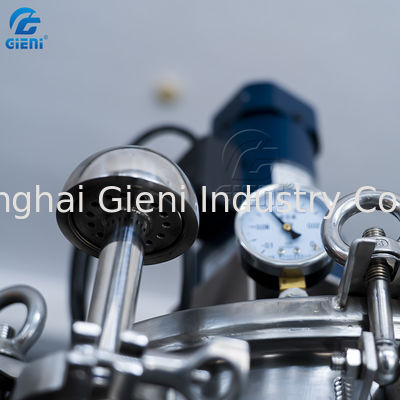

Filling Tank Material 2 layers tank with heating/stirring/vacuum functions, outer layer: SUS304, inner layer: sus316L, comply with GMP standard

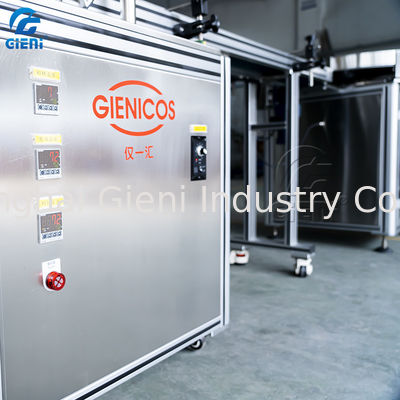

Filling Tank Temperature Control material temperature detection, oil temperature detection, filling nozzle temperature detection
Filling Type suitable for both cold and hot filling, filling volume up to 100ml
Filling Valve new design,90S FAST DISASSEMBLING TYPE, you can select different piston cylinder to fulfill your different filling volume, with fast changeover



45pcs/Min 100ml Concealer Cream Cosmetic Filling Machine With Nozzle Lifting 1



2.Preheating Machine (optional)
a. adopts Switzerland Brand Leister Hot Air Gun to preheat the empty containers
b. the air volume is adjustable



45pcs/Min 100ml Concealer Cream Cosmetic Filling Machine With Nozzle Lifting 2

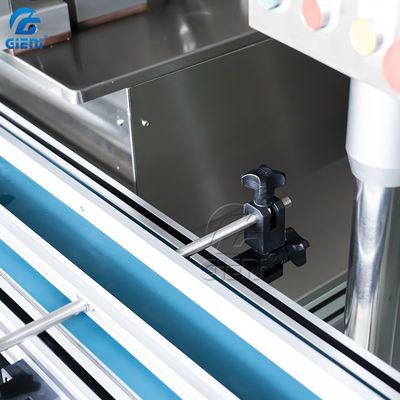

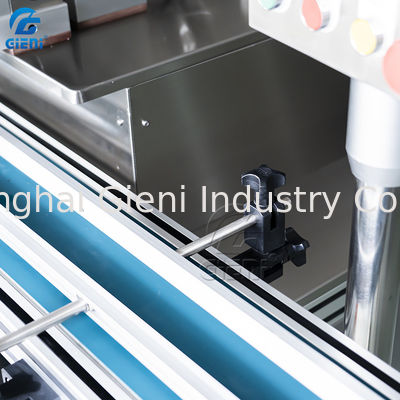

3. Conveyor
conveyor belt adopts Normal PVC belt conveyor (teflon belt as option)
conveyor connection with patent design, with motivation transfer/ live roller bridge type
Motor JSCC speed motor, conveyor speed adjustable





4. Reheating Machine (optional)
a. adopts Switzerland Brand Leister Hot Air Gun to preheat the empty containers
b. the air volume is adjustable



5. Collection Table (optional): SUS304 Material


Main Elements of Concealer Cream Cosmetic Filling Machine

  • Mitsubishi Electric PLC control system with HMI touch screen;
  • JSCC speed motor to adjust conveyor speed

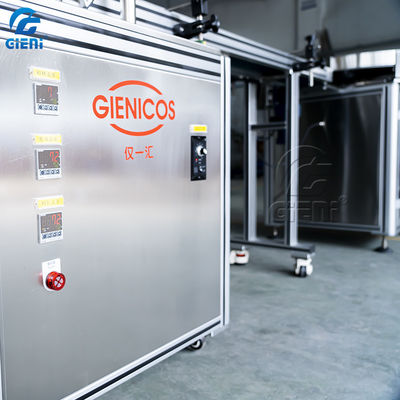

  • Omron temp. controller
  • Mitsubishi Servo Motor

Main Elements of Lip Balm Filling Equipment Balm Stick Cosmetic Filling Machine

  • Mitsubishi Electric PLC control system with HMI touch screen;
  • JSCC speed motor to adjust conveyor speed







45pcs/Min 100ml Concealer Cream Cosmetic Filling Machine With Nozzle Lifting 3

45pcs/Min 100ml Concealer Cream Cosmetic Filling Machine With Nozzle Lifting 4

45pcs/Min 100ml Concealer Cream Cosmetic Filling Machine With Nozzle Lifting 5
