| 브랜드 이름: | GIENI |
| 모델 번호: | JYF |
| MOQ: | 1 |
| 가격: | 협상 가능 |
| 지불 조건: | L/C (신용장), 인수 인도, D/P (지급도 조건), 전신환, 웨스턴 유니온, 머니그램 |
| 공급 능력: | 1 |
Application
Widely applicable, can be applied to most oily fluid filling, especially suitable for liquids and pastes such as lipstick, lipstick, liquid foundation and oils, as well as cold filling and hot filling of ordinary grease and liquids.
Features
1. The filling precision is accurate. This machine uses a servo motor to drive the piston for filling. Equipment accuracy error is less than 2%.

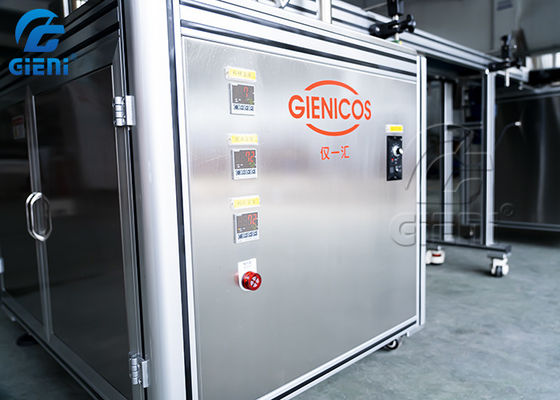

2. This machine is equipped with our specially designed thermal insulation system, without oil circulation system, and can realize the function of uniform constant temperature filling of all parts. At the same time, the machine adopts the filling nozzle plugging technology, which can realize the function of large-dose filling of hot-filled products.
3. This machine can replace material cylinders of different volumes, and adopts a quick-release design, which is clear and convenient.
4. Industrial hot air gun imported from Switzerland, reliable quality and long life; (customized)
5. This machine adopts servo motor to realize the way of filling and rising.
6. Flexible and strong. This machine is suitable for the quick production change function of different specifications of packaging materials, and adopts a modular design, which can quickly disassemble the valve body cleaning function. (Disassembly time for cleaning is about 1-2 minutes).
Parameters

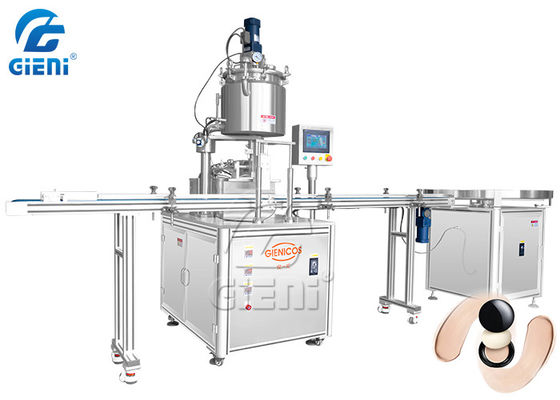

| Model | JYF | -Function Single Head Hot Filling Line | |||
| Voltage | 1P 220V | Currency | 20A | ||
| Output | 5-30pcs/min | Output | 300-1800pcs/hour | ||
| Power | 4.5KW | Air pressure | 0.5-0.8 MPa | ||
| Precision | 50g piston cylinder ±0.1g100g piston cylinder±0.15g | Filling Scope |
50g piston cylinder 5-50g 100g piston cylinder 10-100g |
||
| Dimension | 3100x1220x1710mm | ||||
