원래 장소: | 상하이, 중국 |
브랜드 이름: | GIENI |
인증: | CE |
모델 번호: | FSM-4 |
최소 주문 수량: | 1 |
---|---|
가격: | Negotiable |
포장 세부 사항: | 합판 상자 |
배달 시간: | 45 |
지불 조건: | L/C (신용장), 인수 인도, D/P (지급도 조건), 전신환, 웨스턴 유니온, 머니그램 |
공급 능력: | 1 |
기계 이름: | 장비 화장용 충전기를 제조하는 자동 가득 찬 실리콘 립스틱 | 기계 차원: | 7360X2250X2385mm (LxWxH) |
---|---|---|---|
립스틱 라인: | 예열 장치, 충전기, 쿨링 유니트, 디몰딩 장치, 디몰딩 장치 | 채우는 분사구: | 동시에 이행하기 위한 4개 노즐 |
생산력: | 분 당 720-960 PC | 특징: | Heating Coiled tubes, more safety |
기에니 서비스: | 온라인 지원, 비디오 전화 기술 지원, 무료 수리 부분, 훈련한 현장 설치, 유지 | 애플리케이션: | 가득 찬 실리콘 립스틱 ; 단식 / 복식 충진 ; 마르벨 립스틱 |
하이 라이트: | 960Pcs/Min Silicone Cosmetic Filling Machine,Silicone Lipstick Manufacturing Equipment,Four Nozzles Lipstick Manufacturing Equipment |

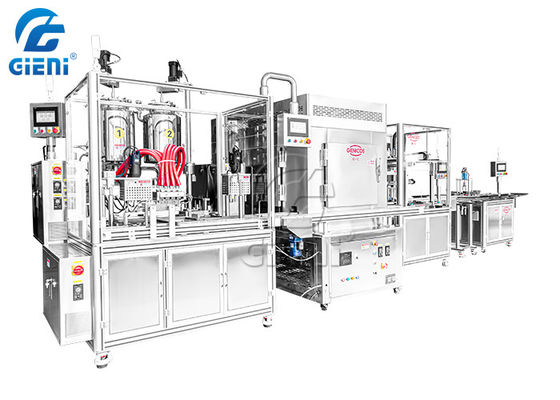

Automatic Full Silicone Lipstick Manufacturing Equipment Cosmetic Filling Machine(FSM-4) is our latest design with 4 nozzles, the output is 720pcs tp 960 pcs per hour. This line consists of pre-heating station, auto filling, auto re-melting, auto cooling, auto demolding, auto screw down and manual capping.
Applications of Automatic Full Silicone Lipstick Manufacturing Equipment Cosmetic Filling Machine
Key Features of Automatic Full Silicone Lipstick Manufacturing Equipment Cosmetic Filling Machine
Pre-heating device
1. Adopts Switzerland brand LEISTER Hot Air Gun, blow rate and heating rate are adjustable
2. With lift up and down function, controlled by cylinder
3. Height adjustable

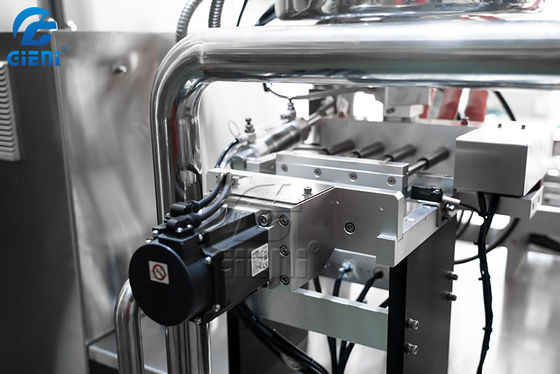

Filling machine (4 nozzles)
1. Two 20L 3-layer stainless steel tank, inner layer is SUS316L.
2. With heating, mixing and vacuum function, mixing speed adjustable.
3. Tank is able to be lifted up/down automatically.
4. Fully servo motor control, fill precision & volume adjustable
5. Filling nozzle with heat preservation and anti-drip functions.
Cooling Unit
1. Temperature range max -20℃
2. Cooling time is adjusable from the mold moving speed.
3. Adopted France brand compressor, environmental refrigenrant medium RAR04A, quality guarantee.
Demolding Unit
1. Vacuum type
2. Grasper the container 4 pcs at a time
3. Rotary cylinder control the grasper's rotating
4. Two-stage vacuum system to release lipstick out of silicone rubber.
5. Lipstick Container Holder automatically to conveyor
Demolding Unit
1. Servo type Screw Down
Model | FSM-4 |
Outer Dimension | 7360x2250x2385mm(LxWxH) |
Voltage | AC380V,3P,50/60HZ |
Power | 32KW |
Air consumption | 0.6~0.8Mpa, ≥800L/min |
Output | 720-960pcs/hour |
Filling range | 2~14ML |
Weight | 1400kg |
Operator | 2~3 persons |
